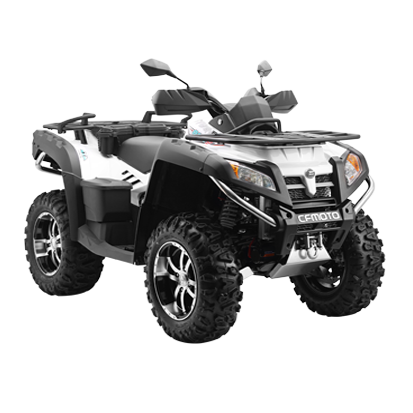

ATV C-FORCE 800S

CFORCE 800S

CFORCE 800S，on the basis of CFORCE 800, have added two side tool boxes on foot pedals and one back tool box. These boxes will enlarge the storage and it gives customers more choices of this product.

• 800cc Dual V-cylinder,4-stroke,4-valve,OHC, 46kw power;EFI system with better atomization
• Lower fuel consumption, lower pollution,better acceleration.Load/pull,
• Max. load: 35kg(front rack), 70kg(rear rack);Max load of trailer: 150kg, Vehicle equipped with towed bracket, Max load:255kg 3000lb electric winch helps self- secure or other assistance, the design of reciever bracket features connecting rear trunk and other vehicles towed.
• May be shown with additional modifications and/or accessories

Engine

Engne Type : V-twin, 8-valve, SOHC, EFI, Liquid-cooled

Displacement : 800cc

Bore & Stroke : 91 x 61.5mm

Compression Ratio : 10.3:1

Maximum Torque : 72N.m/6000rpm

Max. Power : 46kw/6700rpm

Fuel Supply : EFI

Ignition : ECU

Transmission : CVT

Drive : Switchable 2WD/4WD

Dimensions and Weight

L x W x H : 2,973 x 1,430 x 1,883mm

Wheelbase : 1,830mm

Seat Height : 445mm

Mini Ground Clearance : 280mm

Mini Turning Diameter : 9.1m

Fuel Capacity : 26L

Curb WeightSingle : 590kg

Payload Capacity : 230kg

Chassis

Brake : Hydraulic

Suspension : Dual A-arm

Shock Absorber : Spring Preloaded, Oil Damping

Rim : Front: 14×7.0 AT Aluminum Alloy, Rear: 14×8.0 AT Aluminum Alloy

Tire Pressure(kpa) : Front: 26×9-14 52J 70, Rear: 26×11-14 66J 100

Color(s) Available : Titanium Grey, Crystal Orange, Pearl Black, New Camo Maple
