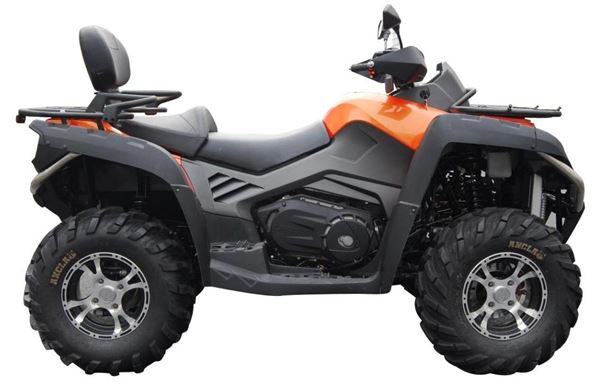

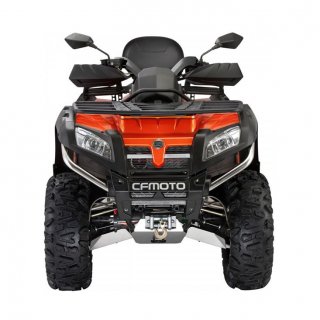

ATV C-FORCE X8 800cc
MOTOR
Type V Twin Cylinder, 8 Valves, 4 Stroke
Displacement 800 cc
Bore & stroke 91 × 61.5mm (3.58 x 2.42 in)
Compression 10.3:1
Fuel system DELPHI electronic injection
Max. torque 72N.m/6 000 rpm
Maximum power (63 HP/6700 rpm)
Cooling SystemLiquid
Ignition CDI
Starting Electric
Lubrification Pressure & splash
Battery 30 Amp
TRANSMISSION
TransmissionCV-TECH IBC variable H/L/N/R/P
Propulsion2 Wheels / 4 Wheels, Lock with break engine
SIZE / WEIGHT
Length x Width x Height2,320 x 1,180 x 1,400 mm (91.34 x 46.46 x 55.12 in)
Wheelbase1,490 mm (58.66 in)
Track Front / Rear920 mm/880 mm (36.22/34.65 in)
Seat height540 mm (from footrest) (21.26 in)
Ground clearance275 mm (10.83 in)
Fuel capacity23 Liters (6,07 gallons)
Dry weight350 kg (771 lb.)
Towing Capacity397 kg (873.4 lb.)
WHEEL
Front and Rear Aluminum Alloy 14" rims with Front 26/9/14 tires Rear 26/11/14 tires
SUSPENSION

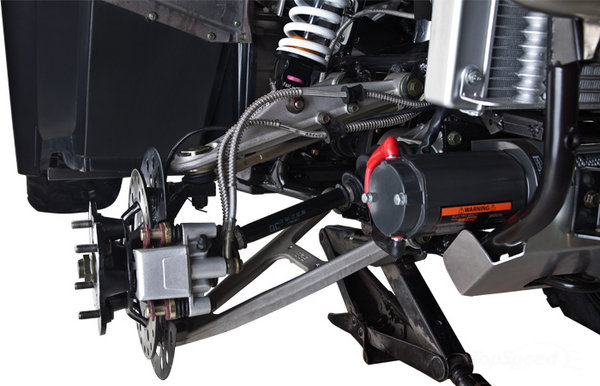

Suspension front Double wishbone independent suspension with coil over gas shocks with rebound adjustment
Front Travel178 mm (7.01 in)
Suspension rear Double wishbone independent suspension with coil over gas shocks with rebound adjustment
Rear Travel215 mm (8.46 in)
STEERING
Electronic Power Steering (EPS)
BREAK
Brakes frontHydraulic braking,
Brakes rearHydraulic braking,
STANDARD

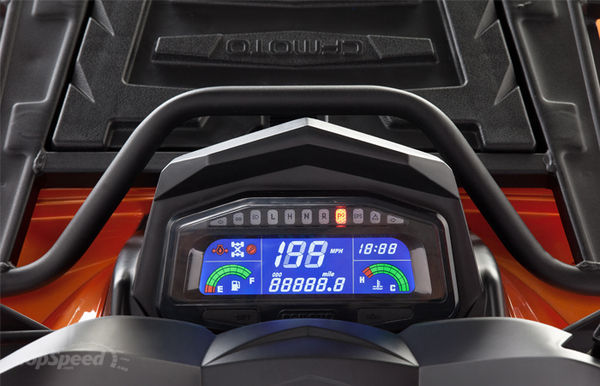

LCD Dashboard
Flashers
Passenger backrest
Passenger handholds
12V auxiliary plug
Hand protectors
3 000lb. Winch
Hazards
Lateral Mirrors
Trailer ball plus electric hook up
