Ultrasonic Flow Meter with Clamp on Sensor

Categories: Measuring instruments

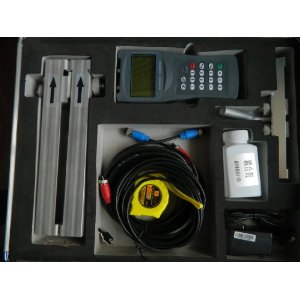

Portable TDS-100H-M1+S1 Handheld Ultrasonic Flow Meter Flowmeter with Clamp on Sensor (DN15-700mm)


Specifications

Linearity: 0.5%

Repeatability: 0.2%

Accuracy: ±1% of reading at rates>0.6 ft/s. ±0.5% with on-site calibration

Response Time: 0-999 seconds, user-configurable

Velocity±0.03 ~ ±105 ft/s (±0.01 ~ ±30 m/s), bi-directional

Pipe Size: (15 ~ 6,000mm)

Rate UnitsMeter, Feet, Cubic Meter, Liter, Cubic Feet, USA Gallon, Imperial Gallon, Oil Barrel, USA Liquid Barrel, Imperial Liquid Barrel, Million USA Gallons. User configurable.

Totaliser7-digit totals for net, positive and negative flow

Liquid TypesVirtually all liquids

SecuritySetup lockout. Access code needed for unlocking

Display4x16 English letters

Communication InterfaceRS-232C, baud-rate: from 75 to 115,200 bps. Protocol made by the manufacturer. User protocols can be made on enquiry.

TransducersModel M1 for standard, other models for optional

Transducer CableStandard 2x30? (10m), optional 2x1,500? (500m)

Power Supply3 AAA Ni-H built-in batteries. When fully charged it will last over 10 hours of operation. / 90-230VAC for the charger

Data LoggerBuilt-in data logger can store over 2,000 lines of data

Manual Totalizer7-digit press-key-to-go totalizer for calibration

Housing MaterialABS. Aluminum alloy protective case

Case Size3.9"x2.6"x0.8" (100x66x20mm)

Handset Weight: 1.2 lbs (514g) with batteries
