รถยกพาเลท รุ่น CL20A

The main mast is made by 12# U-steel, with the leg thickness of 21.3 mm, and the fixed support legs is made by 100*50 rectangular solid steel, which create the powerful mast.

Put a nylon sling through the lifting holes on the top of the mast to lift the whole stacker, which makes the transportation and replacement of the bottom parts easy and convenient.

Speed limitation switch for high level.

Lifting limitation function. When the forks are raised to the maximum height, the system will automatically cut off the power supply for lifting, and smoothly stop.

The main mast is made by 12# U-steel, with the leg thickness of 21.3 mm, and the fixed support legs is made by 100*50 rectangular solid steel, which create the powerful mast.

The hydraulic power unit, power of 3.0 KW, ensures stable and reliable lifting and lowering when loaded. The speed can be adjusted by the operators.

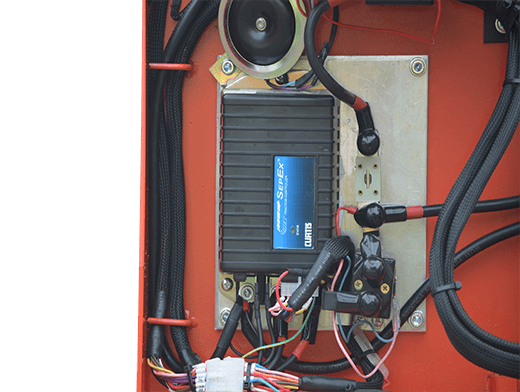

Imported CURTIS AC controller and MOSFETS drive have functions of stepless speed regulating and reverse braking.

Speed limitation switch for high level. When the mast lifts a short distance from the bottom, it will touch the switch automatically.

Emergency stop switch.

Emergency reverse switch on the handle.

The protection arms on both sides of the driving position protect operator’s safety.

Dual masts forklift. The free lifting set between the top of oil cylinder piston rod and the top rail of inner mast. When the forks lift a little bit, the inner mast will not lift.

The turtle speed switch on the handle makes low speed control more precise.

Folding protection arms act freely. By folding, turning and relying on, the protection arms ensure the safety and comfort.

The shock absorber under the pedal can absorb the shock generated during the truck’s movements, to alleviate the impact of the road.

Up and down buttons are on both sides of the handle, and all operating functions are integrated in the handle, which make it very easy to operate

There is a hole on the top of the back part of battery box. Simply press the battery cable temporarily in this hole.

Adjustable bolts on both sides of the fork bracket. When the stacker is used for many years or the forks are not level caused by other factors, the users can adjust the bolts to make the forks level.

1.Self-diagnostic function of the controller. The handheld unit can display error codes, after connected with controller, to make troubleshooting rapid and accurate.
